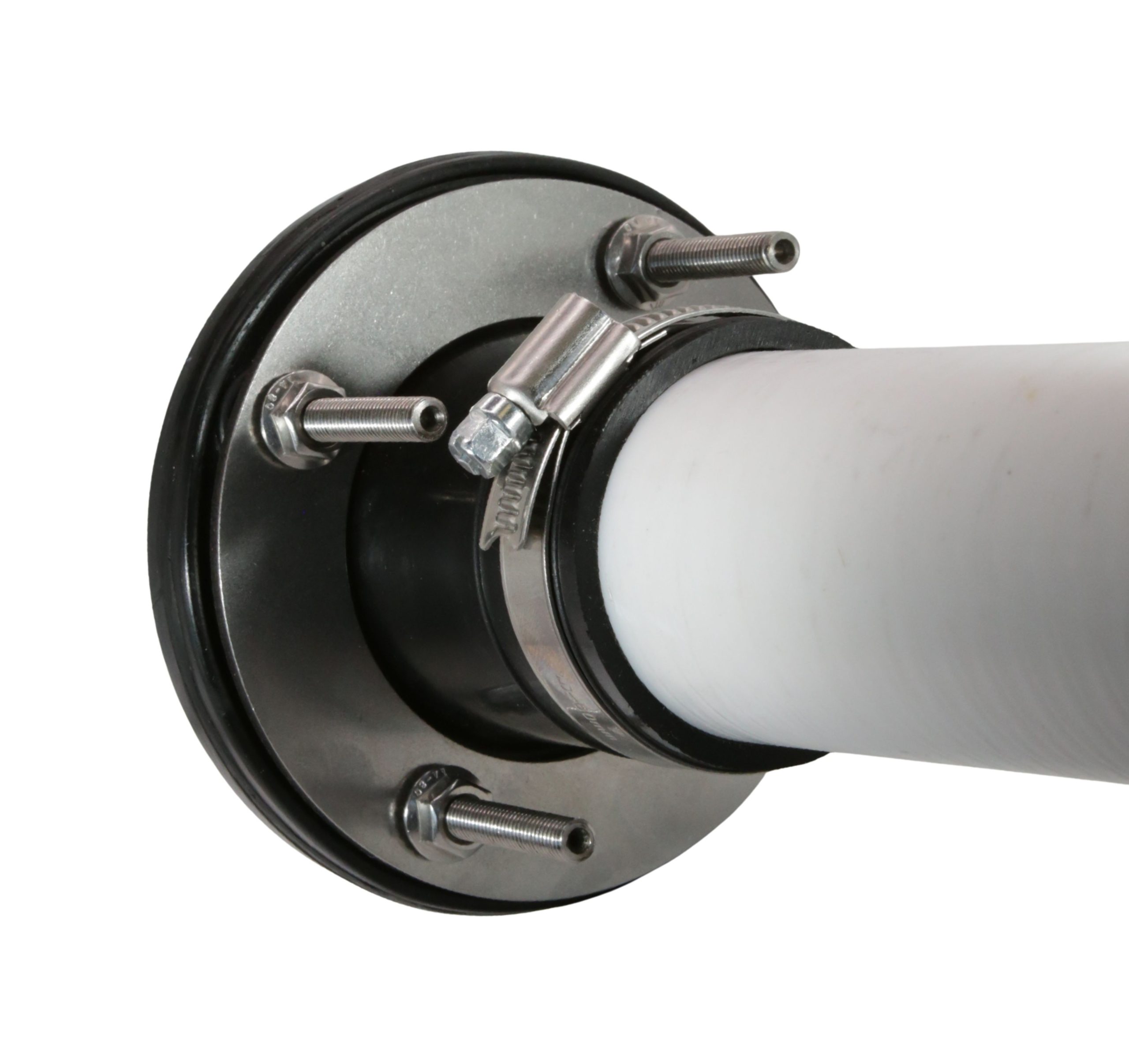

BPG-50 Bulkhead Pipe Gland 50mm OD
The Barton Bulkhead Pipe Gland BPG-50 can be used with multiple pipe and tube sizes with an outer diameter between 45-50mm (1 3/4 – 2″). The required hole cutter is 60mm. The BPG-50 has 4 M6 fasteners supplied.
These glands provide water and vapour tight seal between bulkheads. They are flexible and can accommodate some curved surfaces and pipe entry up to an angle of 15 degrees. They are easy to fit and fully serviceable in situ.
Description
Barton Marine’s bulkhead pipe glands ensure vapour and watertight integrity, comply with MCA Workboat Code 3 regulations which correlate with IMO standards. They are made from durable 316 stainless steel and nitrile rubber. They accommodate various pipe sizes, support angled entries up to 15 degrees, and are easy to install with basic tools. Proper installation prevents water ingress, maintains structural integrity, and ensures long-term performance within bulkheads and compartments throughout vessels.
Benefits include:
Vapour and watertight construction to comply with MCA Workboat Code 3 requirements.
Seals the aperture for pipe, tube and conduit integration
Compatible for angled pipes up to 15 degrees and curved surfaces
Sealed but fully serviceable and adjustable
Reduces vibration, noise and pipe chafing
316 Stainless Steel and Nitrile Rubber (BS2751)
Suitable for bulkheads up to 45mm thick
For more details see:
Check out our product video here
